AMD Ryzen 5 3600

Cores

Threads

65 W

TDP

3.6 GHz

Frequency

4.2 GHz

Boost

Matisse

Codename

Socket AM4

Socket

Connectivity

AMD Socket AM4

The AMD Ryzen 5 3600 is a desktop processor with 6 cores, launched in July 2019, at an MSRP of $199. It is part of the Ryzen 5 lineup, using the Zen 2 (Matisse) architecture with Socket AM4. Thanks to AMD Simultaneous Multithreading (SMT) the core-count is effectively doubled, to 12 threads. Ryzen 5 3600 has 32 MB of L3 cache and operates at 3.6 GHz by default, but can boost up to 4.2 GHz, depending on the workload. AMD is making the Ryzen 5 3600 on a 7 nm production node using 3,800 million transistors. The silicon die of the chip is not fabricated at AMD, but at the foundry of TSMC. You may freely adjust the unlocked multiplier on Ryzen 5 3600, which simplifies overclocking greatly, as you can easily dial in any overclocking frequency.
With a TDP of 65 W, the Ryzen 5 3600 consumes typical power levels for a modern PC. AMD's processor supports DDR4 memory with a dual-channel interface. The highest officially supported memory speed is 3200 MT/s, but with overclocking (and the right memory modules) you can go even higher. For communication with other components in the machine, Ryzen 5 3600 uses a PCI-Express Gen 4 connection. This processor does not have integrated graphics, you will need a separate graphics card. Inside the box you will not only find the processor, but also a Wraith Stealth cooler.
Hardware virtualization is available on the Ryzen 5 3600, which greatly improves virtual machine performance. Programs using Advanced Vector Extensions (AVX) can run on this processor, boosting performance for calculation-heavy applications. Besides AVX, AMD is including the newer AVX2 standard, too, but not AVX-512.

Physical

Socket:	AMD Socket AM4
Foundry:	TSMC
Process Size:	7 nm
Transistors:	3,800 million
Die Size:	74 mm²
I/O Process Size:	12 nm
I/O Die Size:	124 mm²
Package:	µOPGA-1331
tCaseMax:	95°C

Processor

Market:	Desktop
Production Status:	Active
Release Date:	Jul 7th, 2019
Launch Price:	$199
Part#:	100-000000031
Bundled Cooler:	Wraith Stealth

Performance

Frequency:	3.6 GHz
Turbo Clock:	up to 4.2 GHz
Base Clock:	100 MHz
Multiplier:	36.0x
Multiplier Unlocked:	Yes
TDP:	65 W
PPT:	88 W
FP32:	1,209.6 GFLOPS

Architecture

Codename:	Matisse
Generation:	Ryzen 5 (Zen 2 (Matisse))
Memory Support:	DDR4
Rated Speed:	3200 MT/s
Memory Bus:	Dual-channel
ECC Memory:	No
PCI-Express:	Gen 4, 16 Lanes (CPU only)
Chipsets:	AMD 300 Series, AMD 400 Series, AMD 500 Series

Core Config

# of Cores:	6
# of Threads:	12
SMP # CPUs:	1
Integrated Graphics:	N/A

Cache

Cache L1:	64 KB (per core)
Cache L2:	512 KB (per core)
Cache L3:	32 MB (shared)

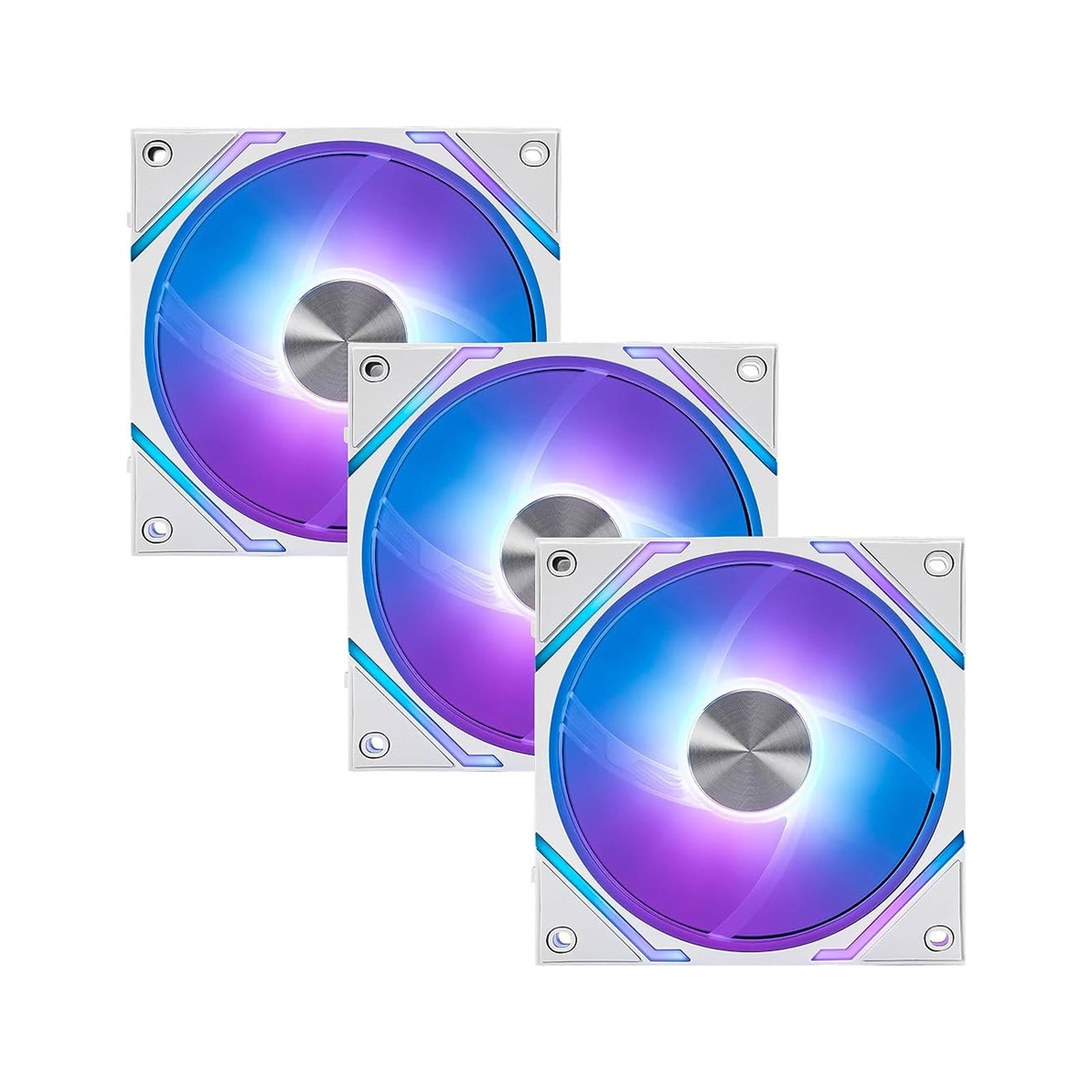

ACCESSORIES MSI MPG EZ120 ARGB WHITE- 3W Fan
