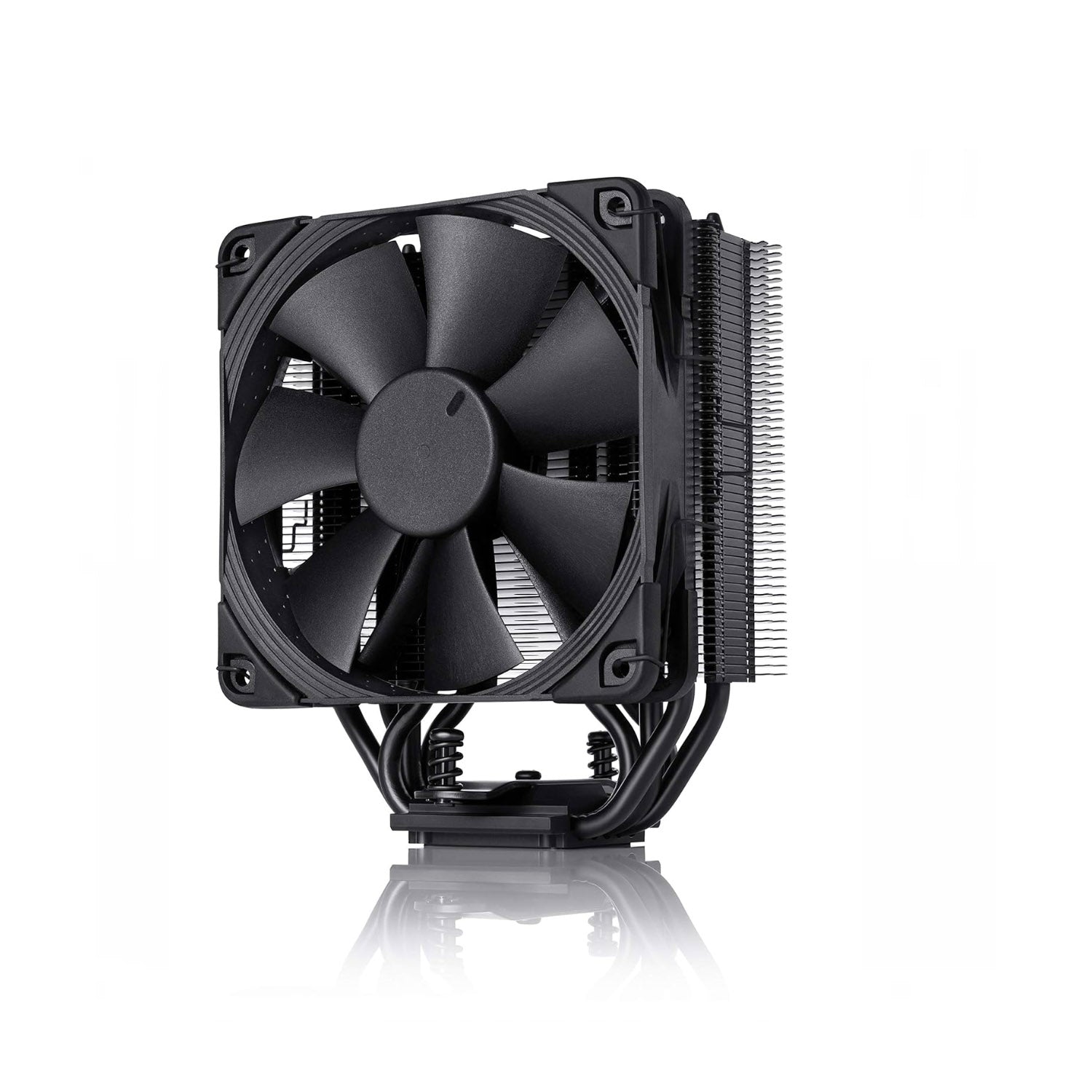

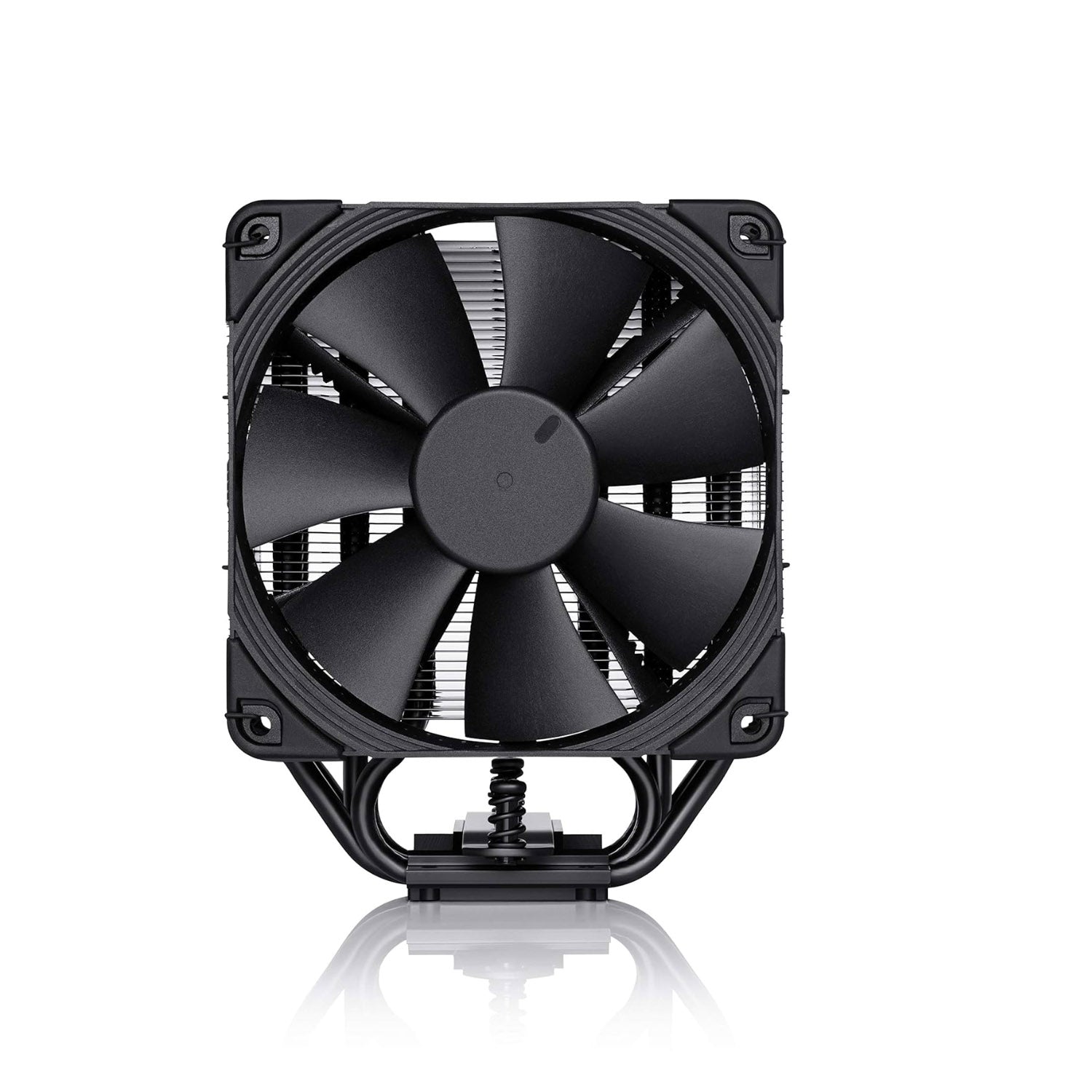

Noctua NH-U12S Chromax Black CPU Cooler (NH-U12S CH.BK)
Couldn't load pickup availability
The NH-U12S is the latest 12cm model of Noctua’s classic U-series single tower CPU coolers, which have received more than 400 awards and recommendations from the international press. The S-version’s 45mm slim shape guarantees 100% compatibility with tall RAM modules and at the same time, its fine-tuned design and the class-leading NF-F12 FocusedFlow™ fan with PWM support for fully automatic speed control allow it to further improve its predecessor’s renowned quiet cooling performance. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-U12S is a complete premium quality solution that combines outstanding performance, quiet operation and excellent compatibility.
|
|
|
Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4 (included since 2019, older coolers require NM-AM4-UxS)
|
|
|
Height (without fan)
158 mm
|
|
|
Width (without fan)
125 mm
|
|
|
Depth (without fan)
45 mm
|
|
|
Weight (without fan)
580 g
|
|
|
Height (with fan)
158 mm
|
|
|
Width (with fan)
125 mm
|
|
|
Depth (with fan)
71 mm
|
|
|
Weight (with fan)
755 g
|
|
|
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
|
|
|
Max. TDP
|
|
|
Fan compatibility
120x120x25
|
|
|
Scope of delivery
|
|
|
|
Model
|
|
|
Bearing
|
|
|
Max. rotational speed (+/- 10%)
1500 RPM
|
|
|
Max. rotational speed with L.N.A. (+/- 10%)
1200 RPM
|
|
|
Min. rotational speed (PWM, +/-20%)
300 RPM
|
|
|
93,4 m³/h
|
|
|
Max. acoustical noise
22,4 dB(A)
|
|
|
Max. acoustical noise with L.N.A.
18,6 dB(A)
|
|
|
Voltage range
12 V
|
|
|
MTTF
> 150.000 h
|
