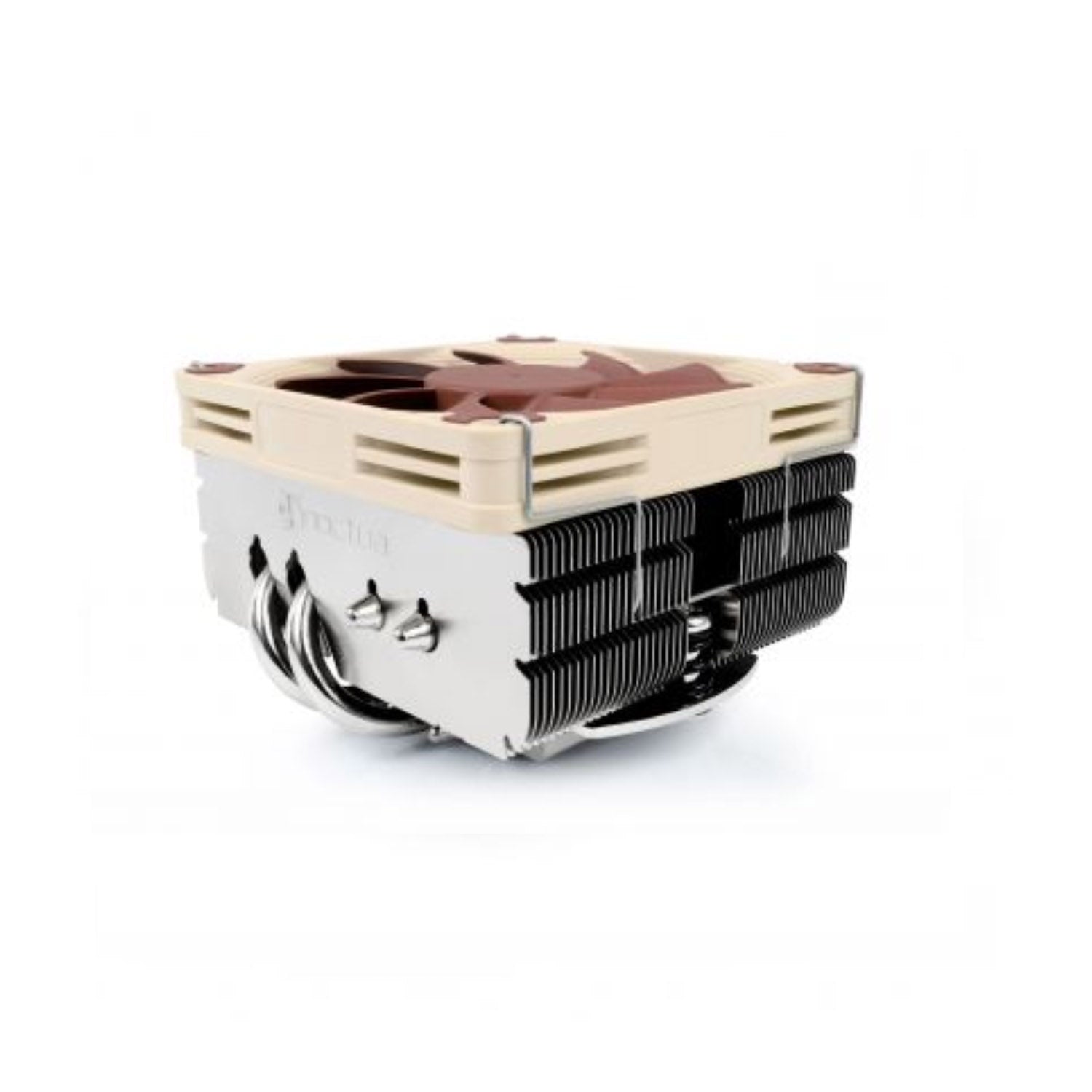

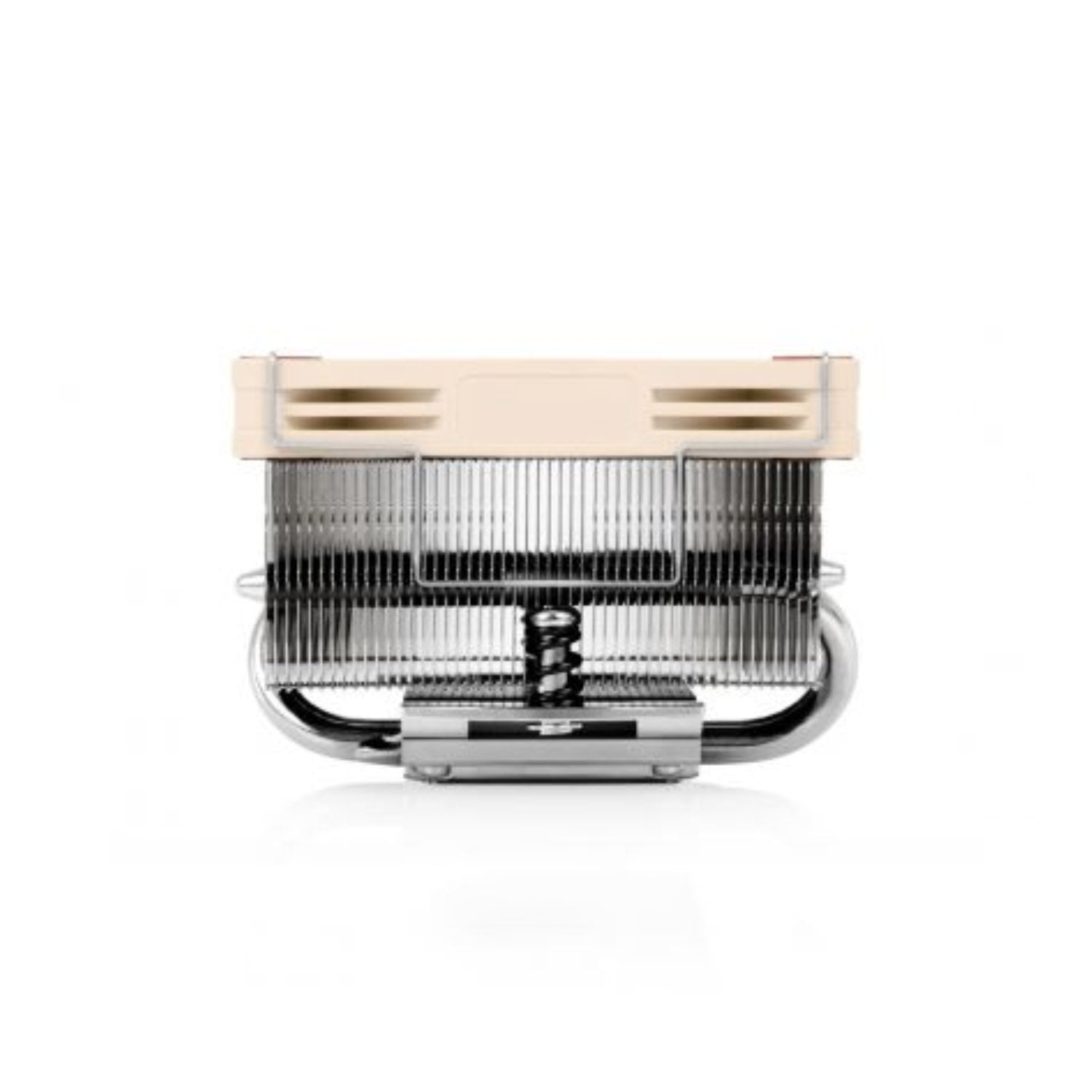

Having received more than 100 awards and recommendations from international hardware websites and magazines, Noctua’s compact NH-L9x65 has become a standard choice among 65mm tall low-profile coolers. The SE-AM4 version is a dedicated special edition for AMD’s AM4 (Ryzen) platform featuring the latest SecuFirm2™ mounting system for AM4. Topped off with the renowned quiet NF-A9x14 PWM 92mm fan, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-L9x65 SE-AM4 forms a complete premium-quality solution for AM4-based ITX builds and HTPC systems.
|
||
Notes and warnings
Please note that being a dedicated special edition for AM4, the NH-L9x65 SE-AM4 comes with AM4 mounting hardware only.
Caution: The NH-L9x65 is a highly compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and should be used with care on CPUs with more than 95W TDP (Thermal Design Power). Please consult our CPU compatibility list and TDP guidelines to find out whether the NH-L9x65 is recommended for your CPU. |
|
|
AMD AM4
|
|
Height (without fan)
51 mm
|
|
Width (without fan)
95 mm
|
|
Depth (without fan)
95 mm
|
|
Weight (without fan)
340 g
|
|
Height (with fan)
65 mm
|
|
Width (with fan)
95 mm
|
|
Depth (with fan)
95 mm
|
|
Weight (with fan)
413 g
|
|
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
|
|
Max. TDP
|
|
Fan compatibility
92x92x14, 92x92x25
|
|
Scope of delivery
|
|
|
Model
Noctua NF-A9x14 PWM
|
|
Bearing
|
|
Max. rotational speed (+/- 10%)
2500 RPM
|
|
Max. rotational speed with L.N.A. (+/- 10%)
1800 RPM
|
|
Min. rotational speed (PWM, +/-20%)
600 RPM
|
|
57,5 m³/h
|
|
Max. acoustical noise
23,6 dB(A)
|
|
Max. acoustical noise with L.N.A.
14,8 dB(A)
|
|
Input power
2,52 W
|
|
Voltage range
12 V
|
|
MTTF
> 150.000 h
|
