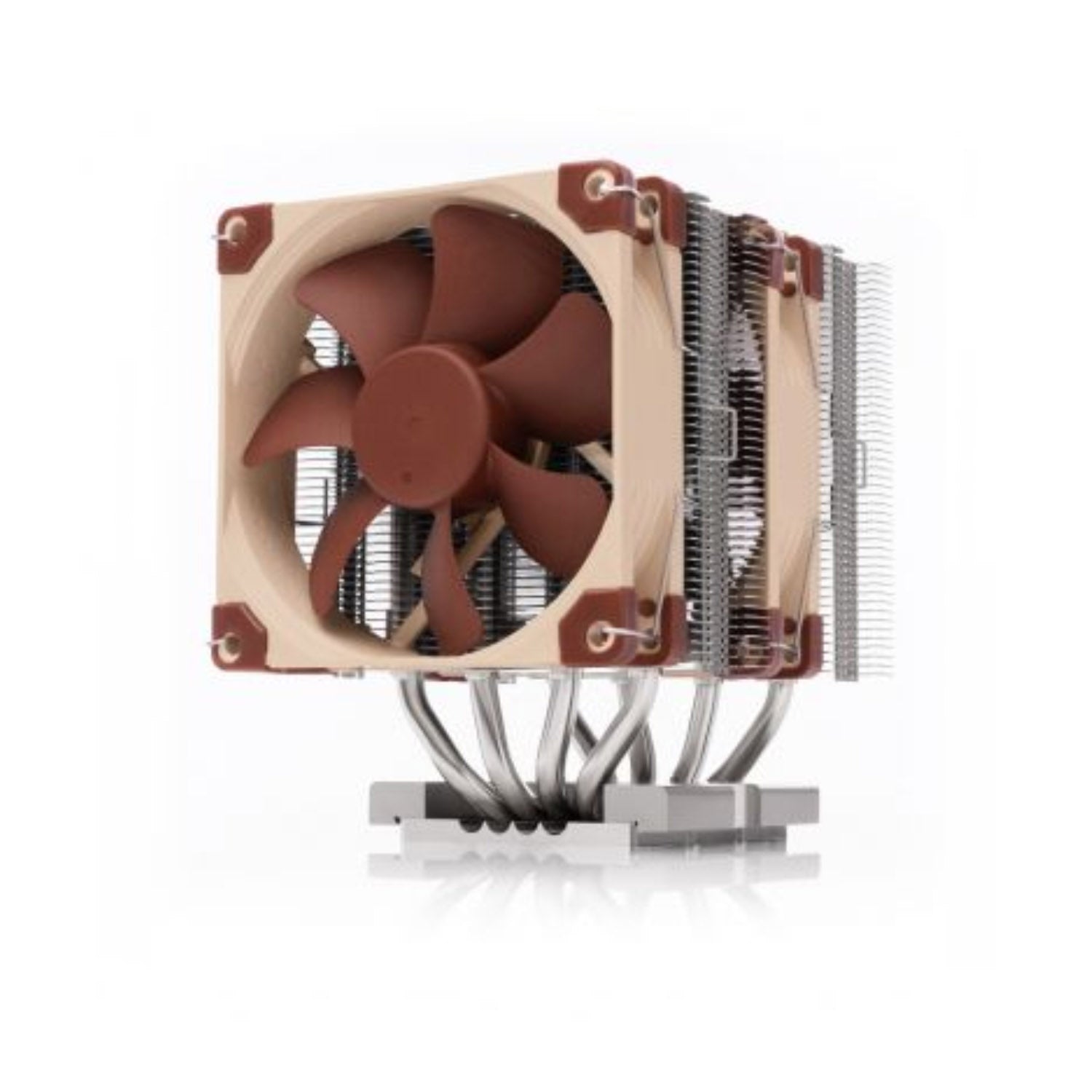

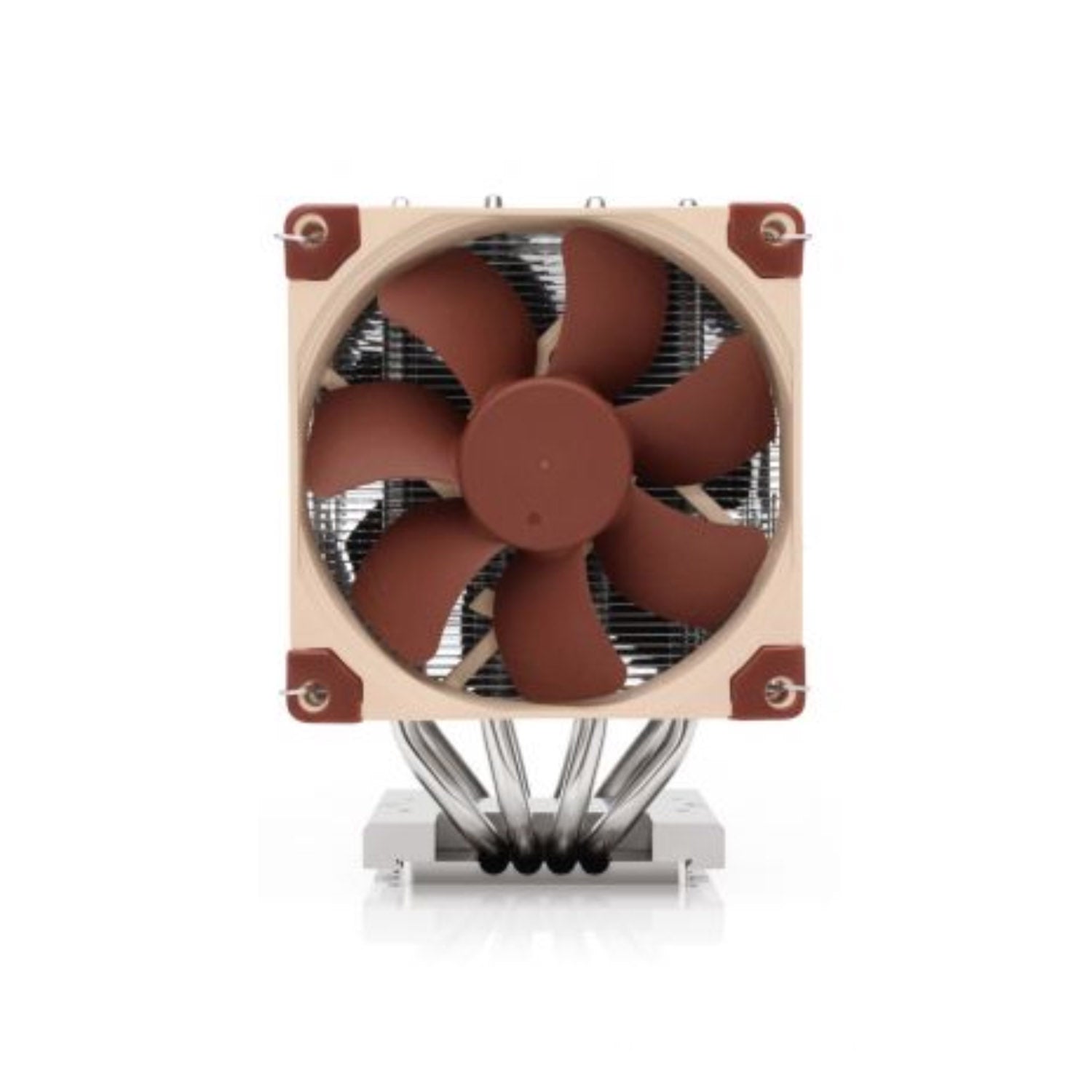

Noctua NH-D9 DX-3647 4U CPU Cooler (NH-D9 DX-3647 4U)
Couldn't load pickup availability
Noctua’s DX line CPU coolers have become a default choice in premium grade quiet cooling solutions for Intel Xeon processors. The NH-D9 DX-3647 4U features a larger, custom-designed contact surface and supports both square and narrow type LGA3647 platforms. Based on the proven, 92mm size NH-D9L heatsink and equipped with two of Noctua’s award-winning, PWM controlled NF-A9 92mm fans (high-efficiency 2500rpm version), it combines strong performance with excellent compatibility for 4U systems and other space-restricted applications. Topped off with the professional SecuFirm2™ mounting system and pre-applied NT-H1 thermal compound, the NH-D9 DX-3647 4U forms a complete premium quality package for quietly cooling LGA3647 based Xeon workstations and servers.
|
|
|
Notes and warnings
Please note that the NH-D9 DX-3647 4U is a dedicated version for the Intel LGA3647 socket. Due to its customised larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.
|
|
|
|
Intel Xeon LGA3647
|
|
|
Height (without fan)
134 mm
|
|
|
Width (without fan)
95 mm
|
|
|
Depth (without fan)
95 mm
|
|
|
Weight (without fan)
584 g
|
|
|
Height (with fan)
134 mm
|
|
|
Width (with fan)
95 mm
|
|
|
Depth (with fan)
120 mm
|
|
|
Weight (with fan)
769 g
|
|
|
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
|
|
|
Fan compatibility
2x 92x92x25mm
|
|
|
Scope of delivery
|
|
|
|
Model
2x Noctua NF-A9 HS-PWM
|
|
|
Bearing
|
|
|
Max. rotational speed (+/- 10%)
2500 RPM
|
|
|
Min. rotational speed (PWM, +/-20%)
400 RPM
|
|
|
96,3 m³/h
|
|
|
Max. acoustical noise
30,6 dB(A)
|
|
|
Input power
1,68 W
|
|
|
Voltage range
12 V
|
|
|
MTTF
> 150.000 h
|
