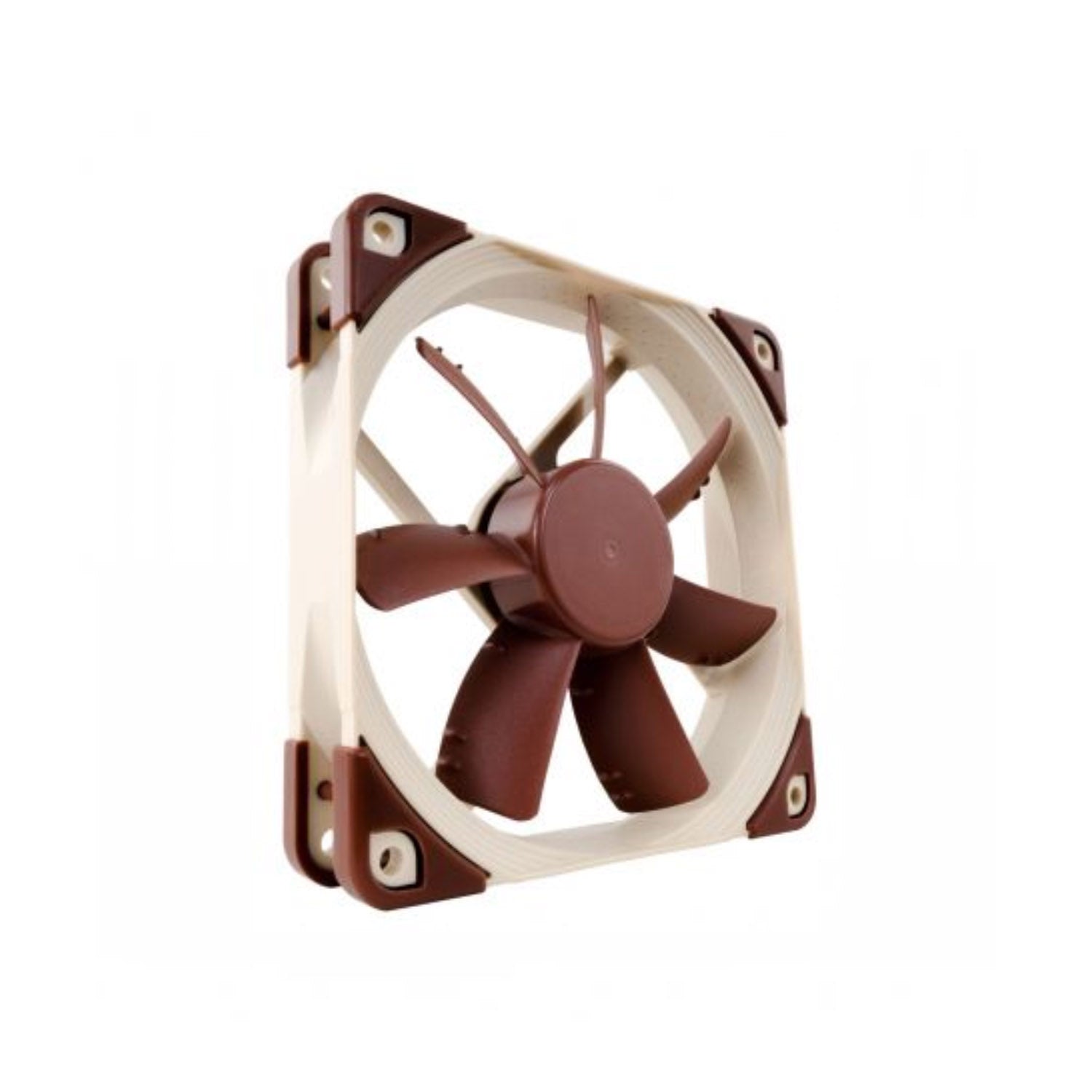

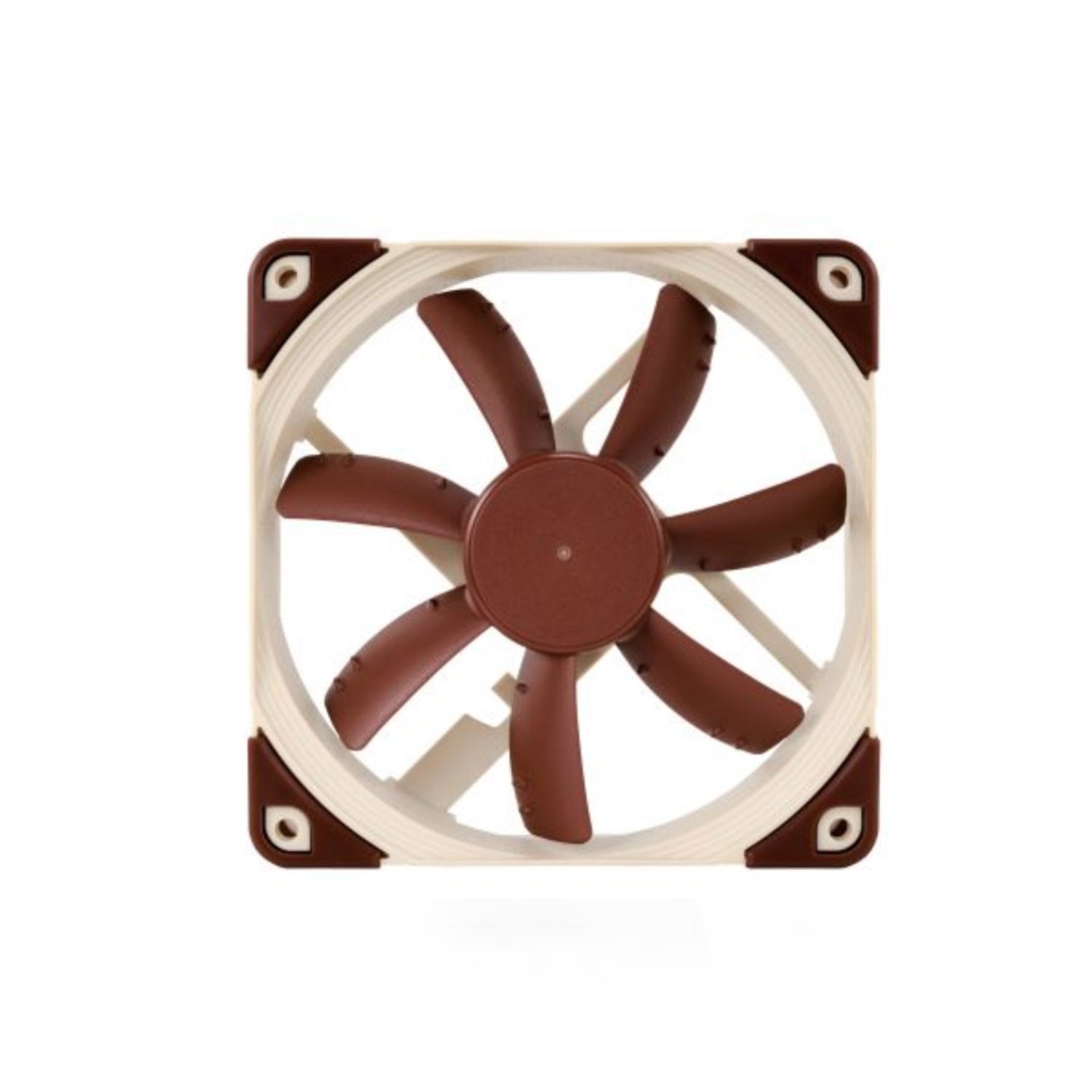

Noctua NF-S12A FLX (NF-S12A FLX)
Couldn't load pickup availability
The NF-S12A marks the third generation of Noctua’s signature S12 series quiet case fans, which have received more than 250 awards and recommendations from the international press. Featuring a further refined blade design with Anti-Stall Knobs that works in tandem with the new AAO (Advanced Acoustic Optimisation) frame, the NF-S12A improves the airflow/noise efficiency of its renowned predecessor by up to 8%. The FLX version provides 1200/900/700rpm speed settings via the supplied Low-Noise Adaptors in order to give you full flexibility in fine-tuning the fan for maximum ventilation performance or near-silent operation. Its superb running smoothness, SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for quiet case cooling.
|
|
|
Size
120x120x25 mm
|
|
|
Mounting hole spacing
105x105 mm
|
|
|
Cable length
20cm + 30cm NA-EC1 extension cable
|
|
|
Bearing
|
|
|
Blade geometry
S-Series with Anti-Stall Knobs
|
|
|
Frame technology
|
|
|
Rotational speed (+/- 10%)
1200 RPM
|
|
|
Rotational speed with L.N.A. (+/- 10%)
900 RPM
|
|
|
Rotational Speed with U.L.N.A. (+/- 10%)
700 RPM
|
|
|
83,2 m³/h
|
|
|
Acoustical noise
17,8 dB(A)
|
|
|
Acoustical noise with L.N.A.
10,7 dB(A)
|
|
|
Acoustical noise with U.L.N.A.
7,4 dB(A)
|
|
|
Static pressure
1,19 mm H₂O
|
|
|
Static pressure with L.N.A.
0,73 mm H₂O
|
|
|
Static pressure with U.L.N.A.
0,51 mm H₂O
|
|
|
Max. input power
1,44 W
|
|
|
Max. input current
0,12 A
|
|
|
Operating voltage
12 V
|
|
|
MTTF
> 150.000 h
|
|
|
Scope of delivery
|
