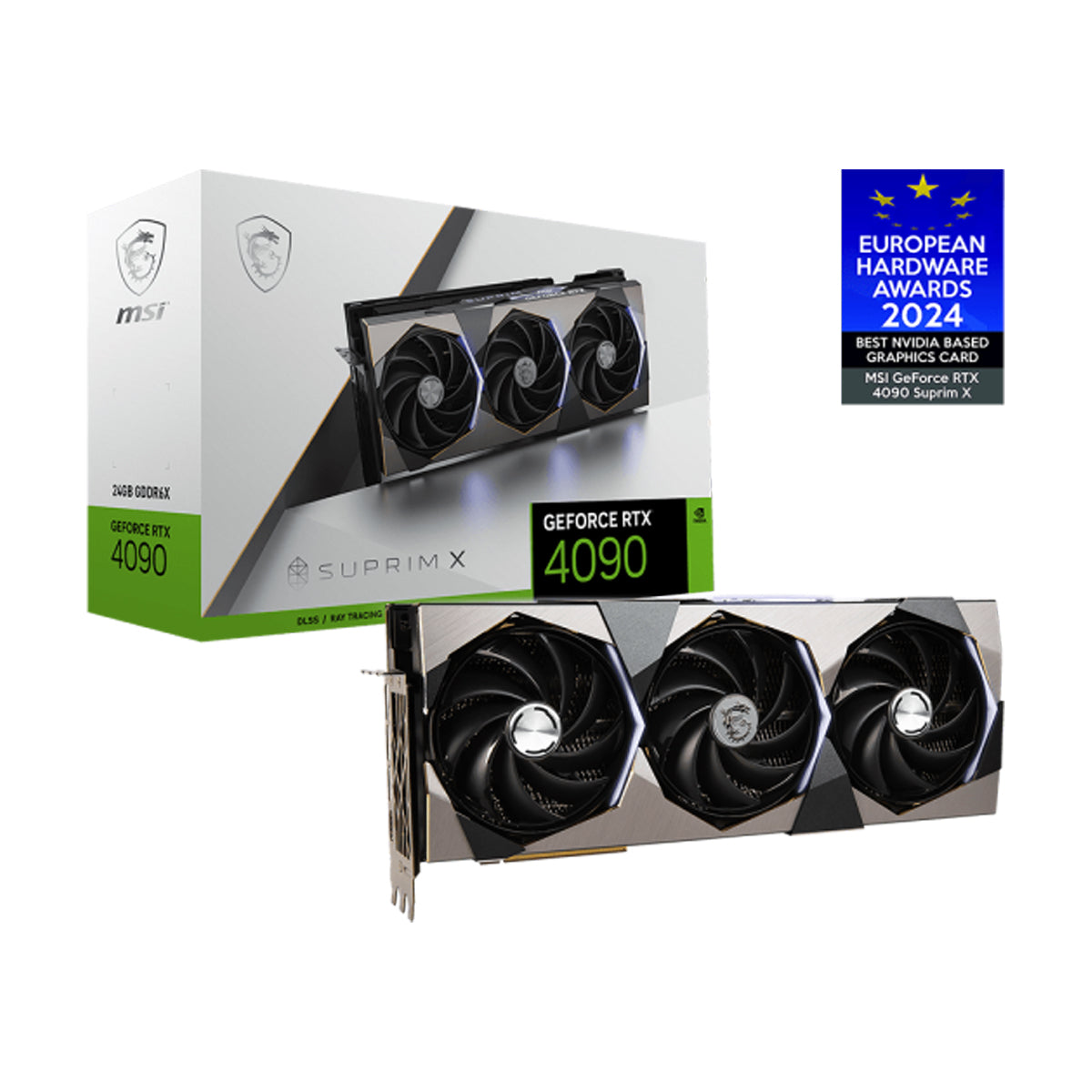

MSI Geforce RTX 4090 Suprim X 24GB Graphic Card

SPECIFICATIONS
Model Name GeForce RTX™ 4090 SUPRIM X 24G
Graphics Processing Unit NVIDIA®
 GeForce RTX™ 4090
Interface PCI Express®
 Gen 4
Core Clocks
Extreme Performance: 2640 MHz (MSI
Center)
Boost: 2625 MHz (GAMING & SILENT Mode)
CUDA®
 CORES 16384 Units
Memory Speed 21 Gbps
Memory 24GB GDDR6X
Memory Bus 384-bit
Output
DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports
4K @120Hz HDR, 8K@60Hz HDR, and
Variable Refresh Rate as specified in HDMI™
2.1a)
HDCP Support Y
Power consumption Silent mode: 450W
Gaming mode: 480W
Power connectors 16-pin x 1
Recommended PSU 1000W (Min. 850W)
Card Dimension (mm) 336 x 142 x 78 mm
Weight (Card / Package) 2413g / 3636g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC®
 technology Y
Digital Maximum Resolution 7680 x 4320



FEATURES
TRI FROZR 3S
Push performance with the latest MSI cooling design and elevate
sophistication with a prestigious appearance.
TORX FAN 5.0
Fan blades linked by ring arcs and a fan cowl work together to
stabilize and maintain high-pressure airflow.
Vapor Chamber
The GPU and memory modules are covered with a Vapor
Chamber which rapidly transfers heat to Core Pipes.
Core Pipe
Precision-machined heat pipes ensure max contact to the GPU
and spread heat along the full length of the heatsink.
Airflow Control
Sections of different heatsink fins disrupt unwanted airflow
harmonics and reduce noise.
Zero Frozr
The fans completely stop when temperatures are relatively low,
eliminating all noise.
Metal Backplate
Thermal pads under the sturdy metal backplate provide additional
cooling while the flow-through ventilation reduces trapped heat.
Wave Curved 3.0
Additional efficiency is gained by adjusting the size of the wave
edges under the fan motor and other spots where there is less
airflow.
