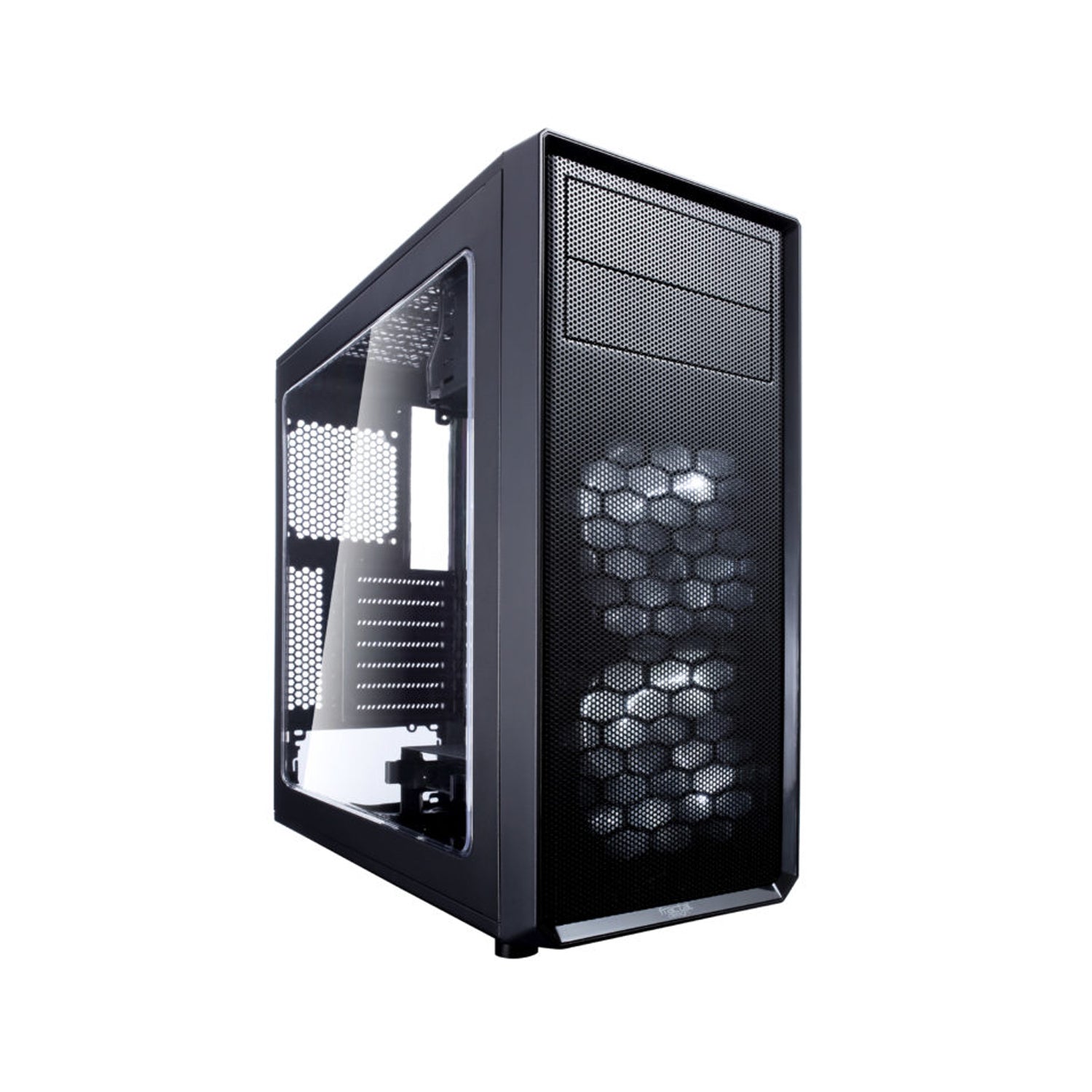

The new Focus series from Fractal Design is the cornerstone for your PC build, showcasing the hardware aesthetics at the heart of your system with elegant accents and sophisticated style.
Contemporary ATX case design accommodates high-performance components with smart and efficient space utilization for a compact footprint.
Extensive cooling options are available with support for tall CPU heatsink/fan combos and water cooling with multiple dual-fan radiators.
Filtered front, top and base air intakes maintain a dust-free environment while expert cable management options keep wiring tidy.
With edge-to-edge visibility, clean contemporary styling and two Silent Series LED fans, the Focus makes your hardware the center of attention.
Key features
- Available in Black, White, Petrol Blue, Mystic Red, and Gunmetal Gray
- Large windowed side panel
- Two preinstalled Fractal Design Silent Series LL 120mm White LED fans
- Six total fan positions for high-airflow capability
- Filtered front, top and base air intakes for a dust free interior
- Support for high-profile CPU coolers and multiple radiator configurations
- 18 - 25 mm of space for cable routing behind the motherboard plate
- Support for graphics cards up to 380 mm long without compromising hard drive space
- Two vibration dampened universal drive bays with support for6TB+ HDDs and 15mm SSDs, plus an additional 2.5" mount behind the motherboard tray
- Front I/O panel includes USB 3.0, USB 2.0 and audio jacks
- Kensington anti-theft padlock bracket and re-usable ventilated expansion slot covers included
Specification
Colors available |
Multiple colors |
Side panel window |
Large |
3.5" or 2.5" Drive capacity |
2 |
Dedicated 2.5" drive capacity |
1 |
Dedicated 5.25" drive brackets |
2 |
Expansion slots |
7 |
Motherboard compatibility |
ATX, mATX, ITX |
Power supply type |
ATX |
Total fan mounts |
6 |
Front fan |
2x 120 or 2x 140 2x Silent Series LL 120mm LED fans included |
Top fan |
2x 120 or 2x 140 |
Rear fan |
1x 120 |
Bottom fan |
1x 120 |
Side fan |
No |
Dust filters |
Top fans Bottom fan + PSU Front fans |
Front radiator |
120/240mm 140/280mm Limitation: 280 requires that the bottom 5.25" slot is unused |
Top radiator |
240mm |
Rear radiator |
120mm (max width 120mm) |
Power supply depth limit |
Maximum 230mm |
Graphics card length limit |
380mm |
CPU cooler height limit |
165mm |
Cable routing |
18-25 mm space |
Cable routing grommets |
No |
Fixed velcro straps |
No |
Padlock and Kensington lock support |
Yes |
Captive thumbscrews |
Both side panels |
Dimension (WxHxD) |
205x444x464 mm |
Volume |
39.8 L |
Weight |
4.5 kg |
Package contents
- Focus G computer case
- User manual
- Accessory box
Additional information
- EAN (Focus G Black, window): 7350041084907
- UPC (Focus G Black, window): 817301014908
- Product code (Focus G Black, window): FD-CA-FOCUS-BK-W
