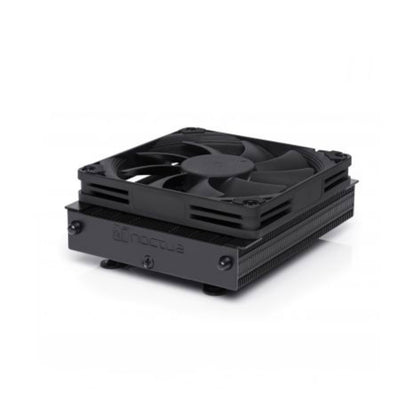

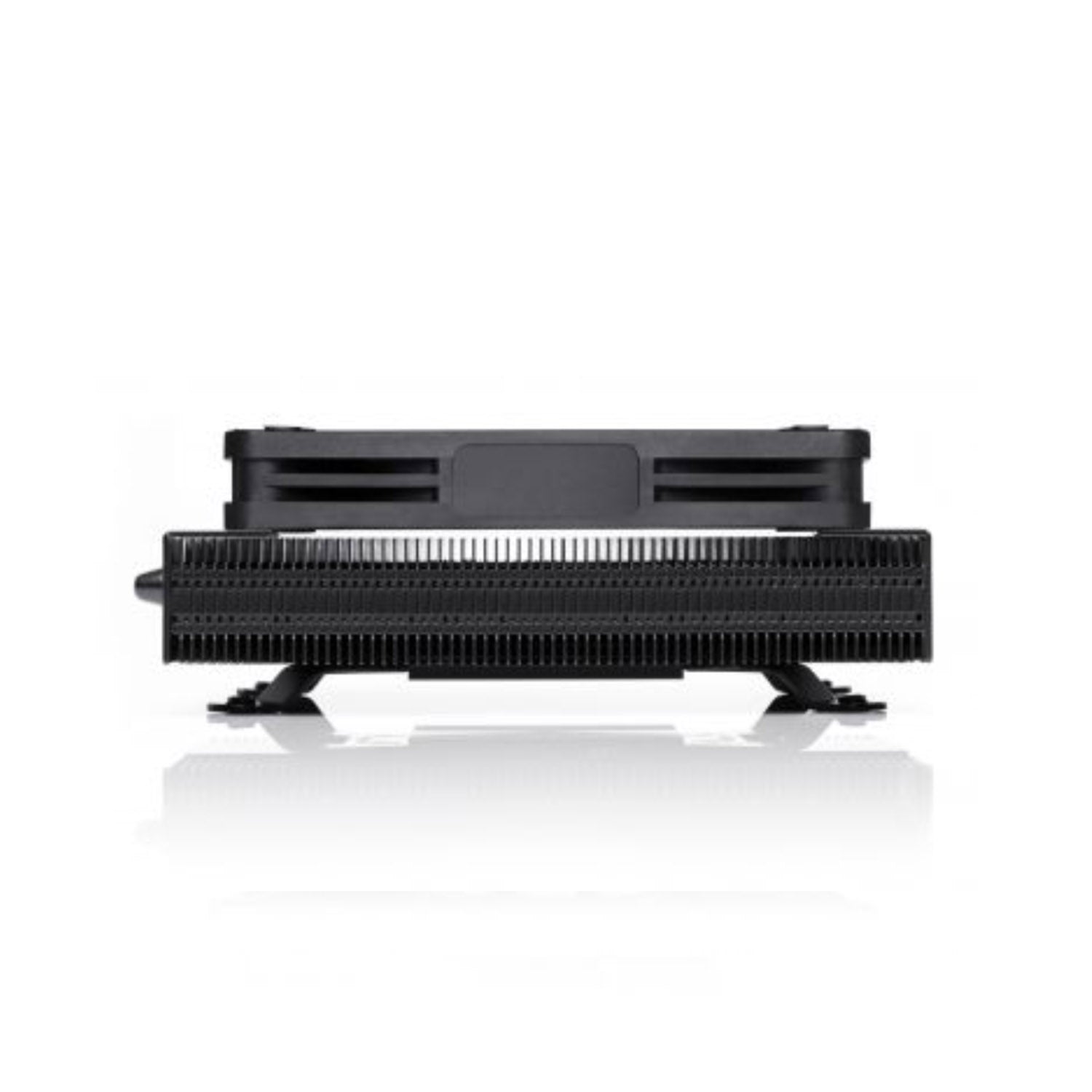

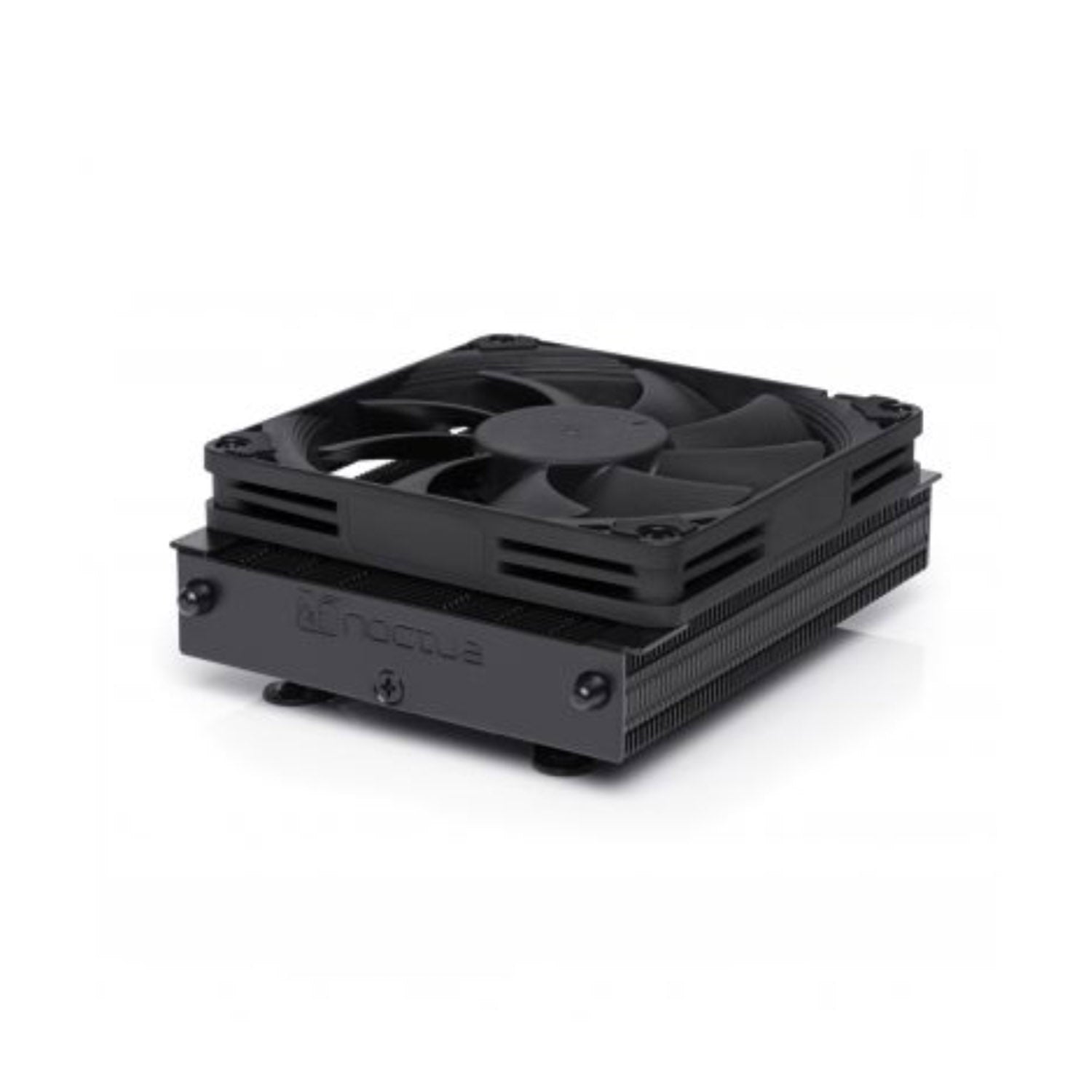

Noctua NH-L9a-AM4 Chromax Black CPU Cooler (NH-L9a-AM4 CH.BK)

₱3,102.00
₱3,102.00
Availability: In stock
SKU: PN1100802
Collections:
₱3,102.00
₱3,102.00

The NH-L9a-AM4 is the latest, AM4-specific revision of Noctua’s award-winning NH-L9a low-profile CPU cooler for AMD Ryzen-based HTPCs and Small Form Factor (SFF) systems. At a height of only 37mm, the NH-L9a is ideal for extremely slim cases and, due to its small footprint, it provides 100% RAM and PCIe compatibility as well as easy access to near-socket connectors even on tightly packed mini-ITX motherboards. The custom-designed SecuFirm2™ mounting system for the AM4 socket makes installation child’s play and, thanks to the highly optimised NF-A9x14 92mm fan that supports fully automatic speed control via PWM, the NH-L9a-AM4 runs remarkably quietly. Topped off with Noctua’s renowned NT-H1 thermal compound, the NH-L9a-AM4 combines everything users have come to expect from Noctua’s larger coolers into a super-compact, premium-quality package for ITX and HTPC builds with Ryzen CPUs or APUs.



General
Notes and warnings
The NH-L9a-AM4 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and is only recommended for CPUs/APUs with up to 95W TDP (Thermal Design Power). Please consult our CPU compatibility listand TDP guidelines to find out whether the NH-L9a-AM4 is recommended for your CPU/APU.





Cooler Specification
Socket compatibility
AMD AM4
Height (without fan)
23 mm
Width (without fan)
114 mm
Depth (without fan)
92 mm
Weight (without fan)
390 g
Height (with fan)
37 mm
Width (with fan)
114 mm
Depth (with fan)
92 mm
Weight (with fan)
465 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP
see CPU compatibility list
Fan compatibility
92x92x14mm, 92x92x25mm
Scope of delivery
  • NF-A9x14 PWM premium fan
  • Low-Noise Adaptor (L.N.A.)
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ AM4 mounting kit
  • Screws for 92x92x25mm fans
  • Noctua metal case-badge





FAN Specification
Model
Noctua NF-A9x14 PWM
Bearing
SSO2
Max. rotational speed (+/- 10%)
2500 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1800 RPM
Min. rotational speed (PWM, +/-20%)
600 RPM
Max. airflow
57,5 m³/h
Max. airflow with L.N.A.
40,8 m³/h
Max. acoustical noise
23,6 dB(A)
Max. acoustical noise with L.N.A.
14,8 dB(A)
Input power
2,52 W
Voltage range
12 V
MTTF
> 150.000 h
