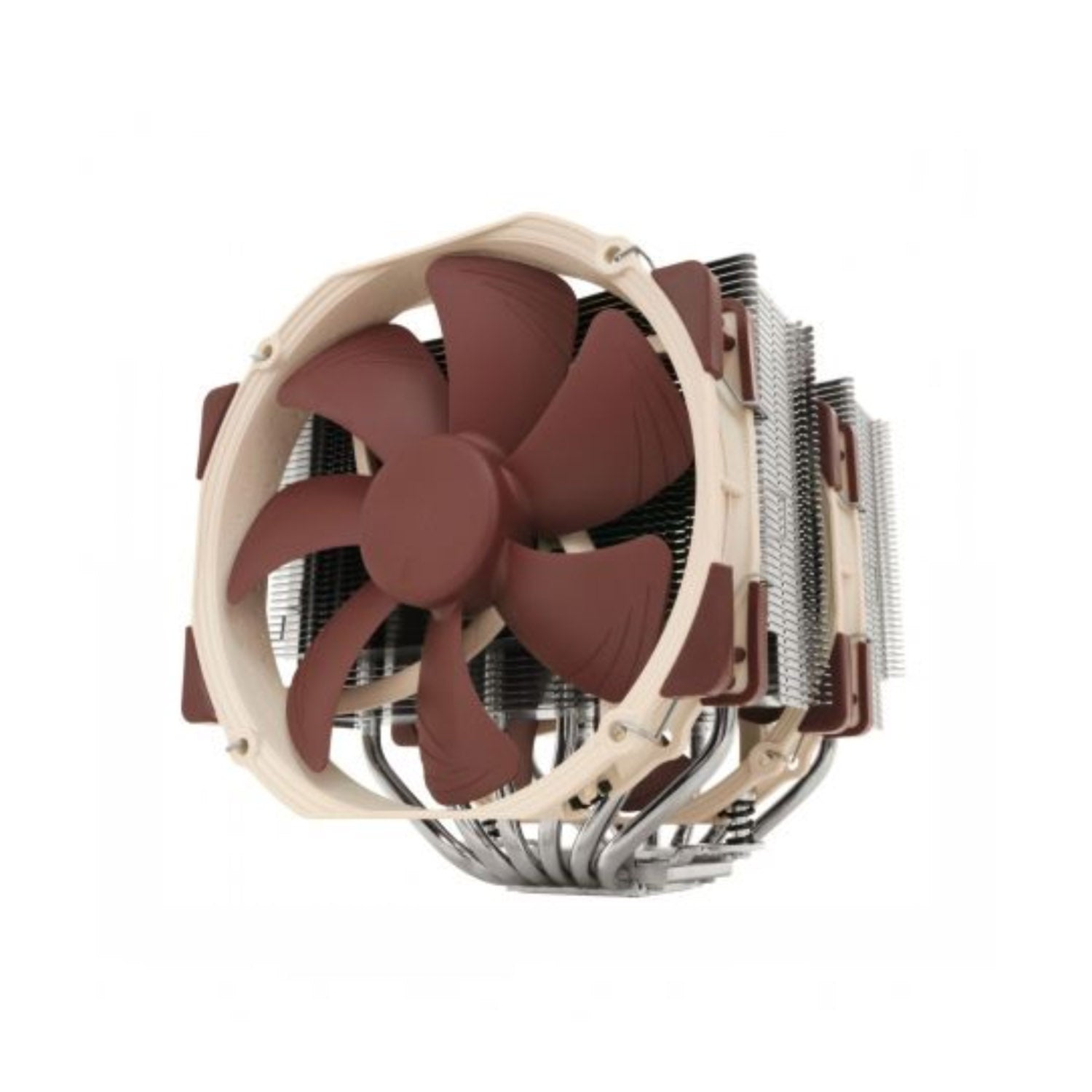

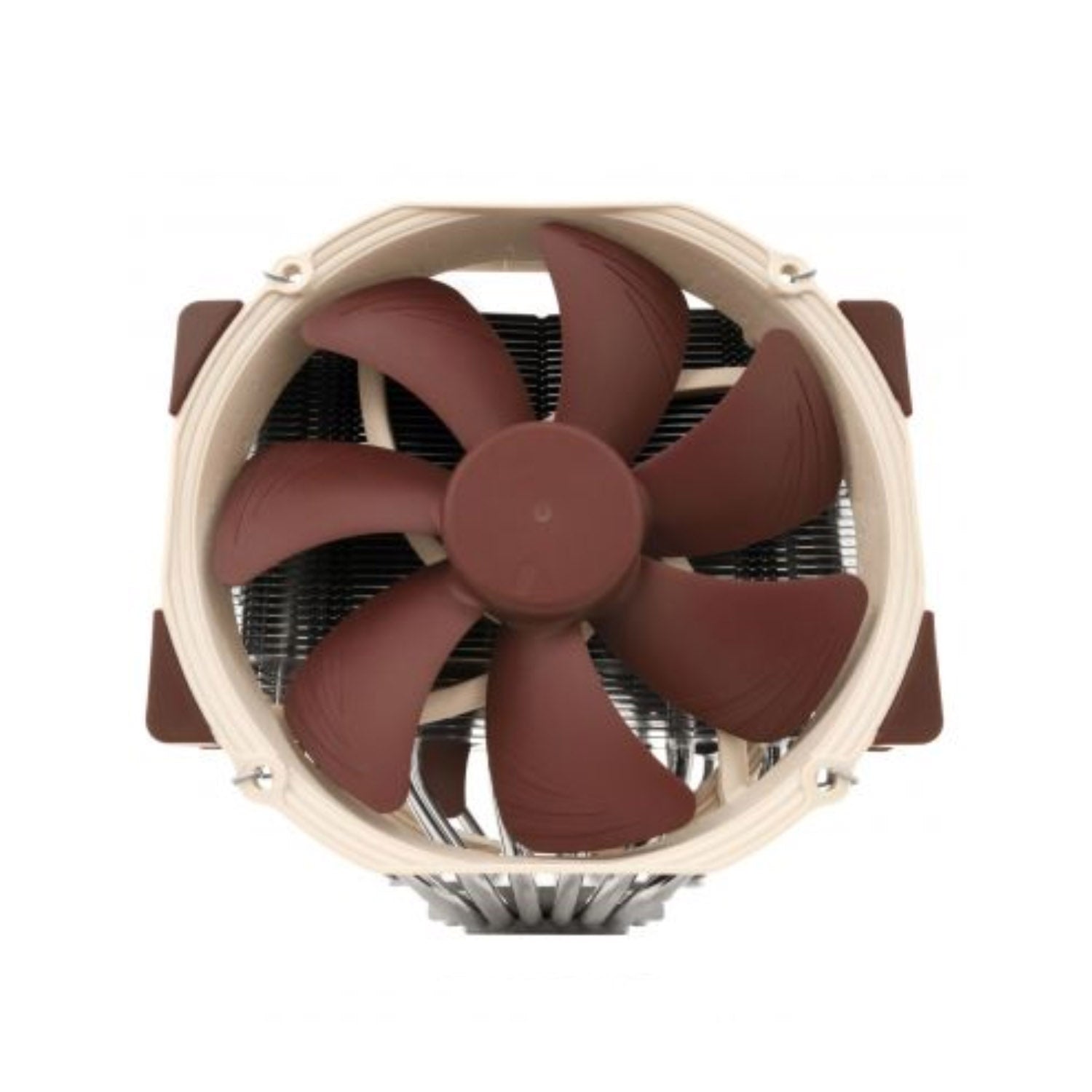

Having received more than 200 awards and recommendations from international hardware websites and magazines, Noctua’s flagship model NH-D15 has become a benchmark for elite-class dual tower coolers. The SE-AM4 version is a dedicated special edition for AMD’s AM4 (Ryzen) platform featuring the latest SecuFirm2™ mounting system for AM4. Topped off with two of the renowned quiet NF-A15 PWM 140mm fans, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-D15 SE-AM4 forms a complete premium-quality solution that represents a deluxe choice for both overclockers and silent enthusiasts who strive to tune their AM4 systems to the max.
|
|
Notes and warnings
Please note that being a dedicated special edition for AM4, the NH-D15 SE-AM4 comes with AM4 mounting hardware only.
|
|
|
AMD AM4
|
|
Height (without fan)
160 mm
|
|
Width (without fan)
150 mm
|
|
Depth (without fan)
135 mm
|
|
Weight (without fan)
980 g
|
|
Height (with fan)
165 mm
|
|
Width (with fan)
150 mm
|
|
Depth (with fan)
161 mm
|
|
Weight (with fan)
1320 g
|
|
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
|
|
Max. TDP
|
|
Fan compatibility
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
|
|
Scope of delivery
|
|
|
Model
2x Noctua NF-A15 PWM
|
|
Bearing
|
|
Max. rotational speed (+/- 10%)
1500 RPM
|
|
Max. rotational speed with L.N.A. (+/- 10%)
1200 RPM
|
|
Min. rotational speed (PWM, +/-20%)
300 RPM
|
|
140,2 m³/h
|
|
115,5 m³/h
|
|
Max. acoustical noise
24,6 dB(A)
|
|
Max. acoustical noise with L.N.A.
19,2 dB(A)
|
|
Input power
1,56 W
|
|
Voltage range
12 V
|
|
MTTF
> 150.000 h
|
